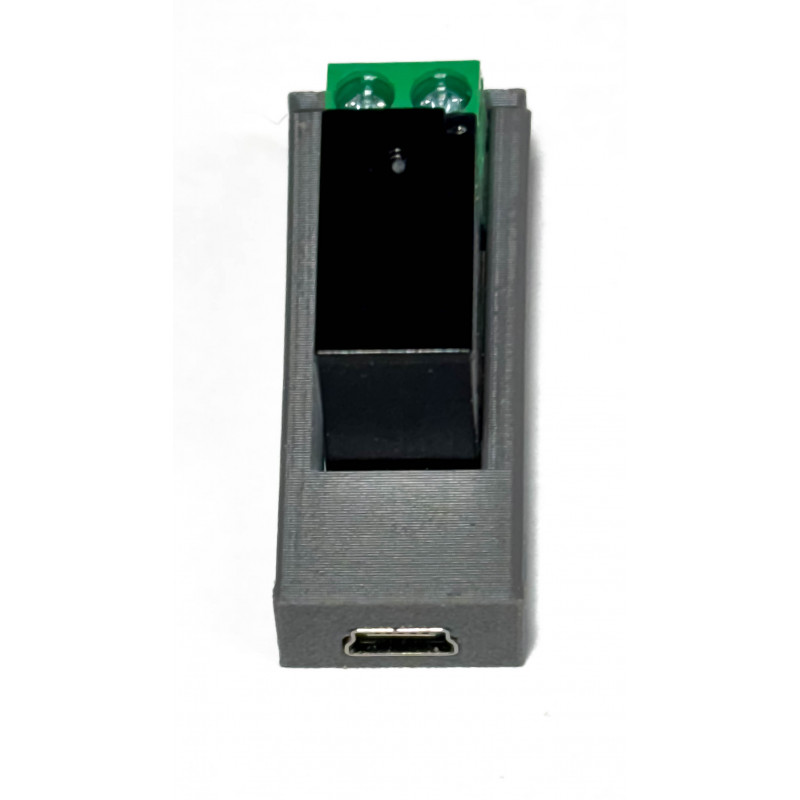

Mini USB Relay Contact Closure
$13.95
This is the smallest and easiest to use contact closure relay on the market. The relay is both powered and controlled via USB. The device will be detected as a virtual com port and can be controlled with simple commands.
-
- ON => Closes the relay
- OFF => Opens the relay
- ? => returns current status, ON or OFF
- I => returns a unique id
-
Specifications
- Max Load: 10A / 2200 W
- Connectivity: Mini USB Virtual Com Port @ 115200N81
- Firmware Upgrade: Via mini USB
- Hardware/Firmware customizations available upon request. Contact us for additional mounting and enclosure options.
